4. 使用设备

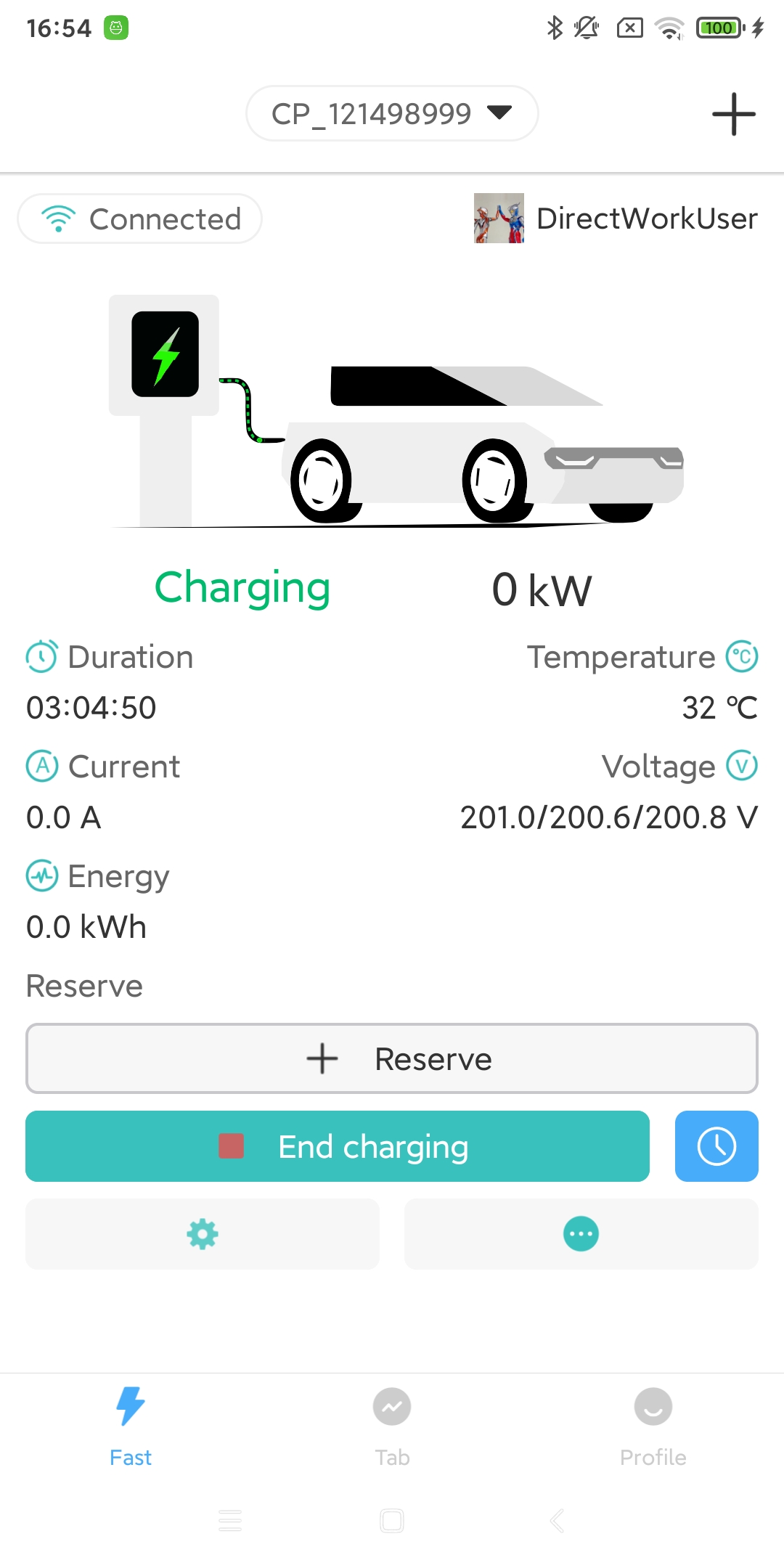

4.1. 通过“快速”页面使用

预约按钮可以按照您设置的规则进行充电。（仅桩主可用，如果您当前查看的设备是被分享而来且没有被开放权限，那么您仅能使用“开始充电”按钮右侧的“定时”图标按钮，来进行单次预约充电。详细请查看分享设备流程）。
“开始充电”/“结束充电”按钮，可以立即开始/结束充电。
设置图标按钮可以对充电桩设备进行基础参数设置，详细请查看。
更多图标按钮对充电桩设备进行了功能拓展，详细请查看。

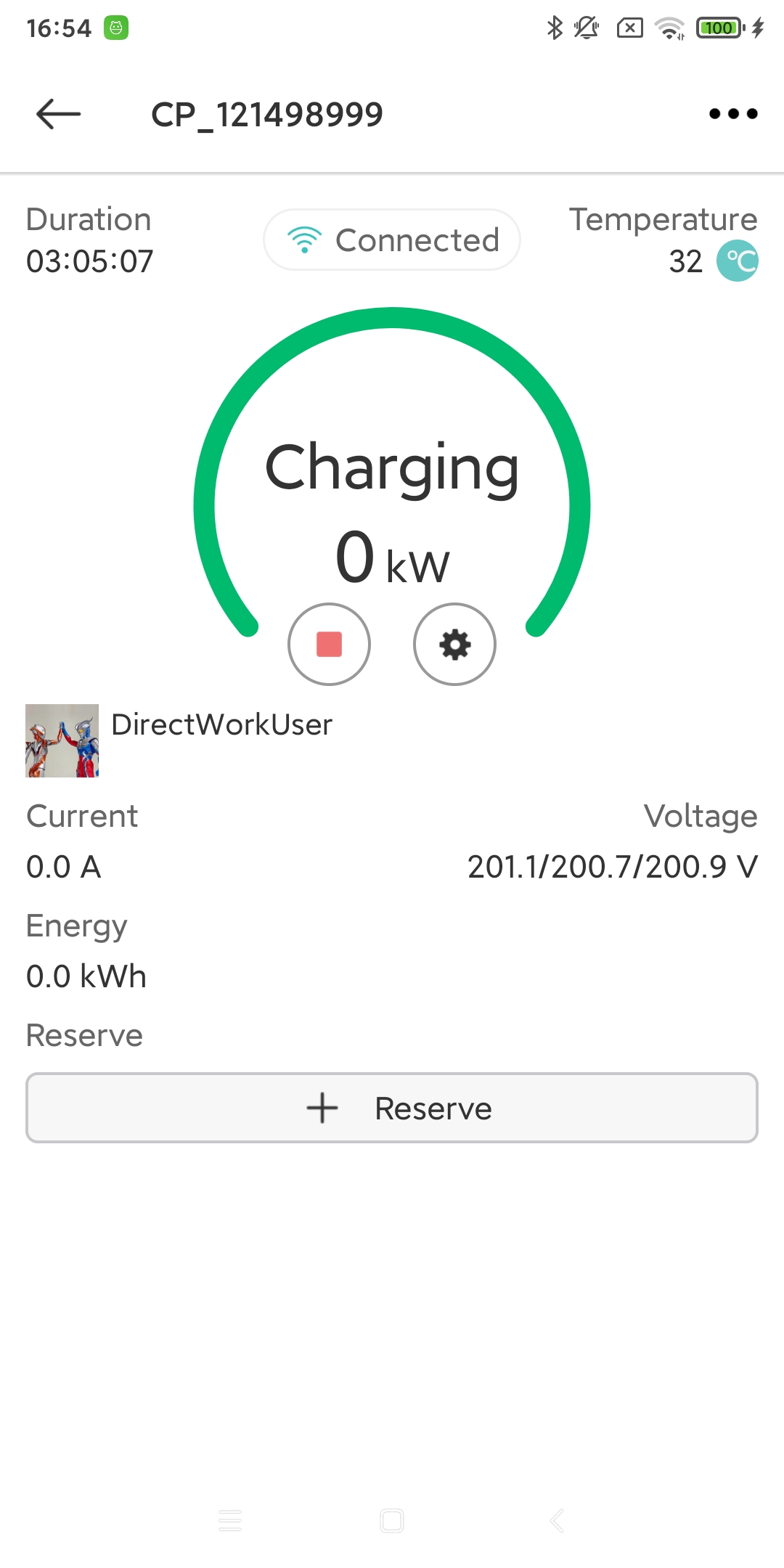

User:: 此次充电事务的启动者。（DirectWorkUser为即插即充模式。）
Duration:: 此次充电事务持续的时间。（充电事务不以结束充电为止，而是以充电枪被拔出为止。）

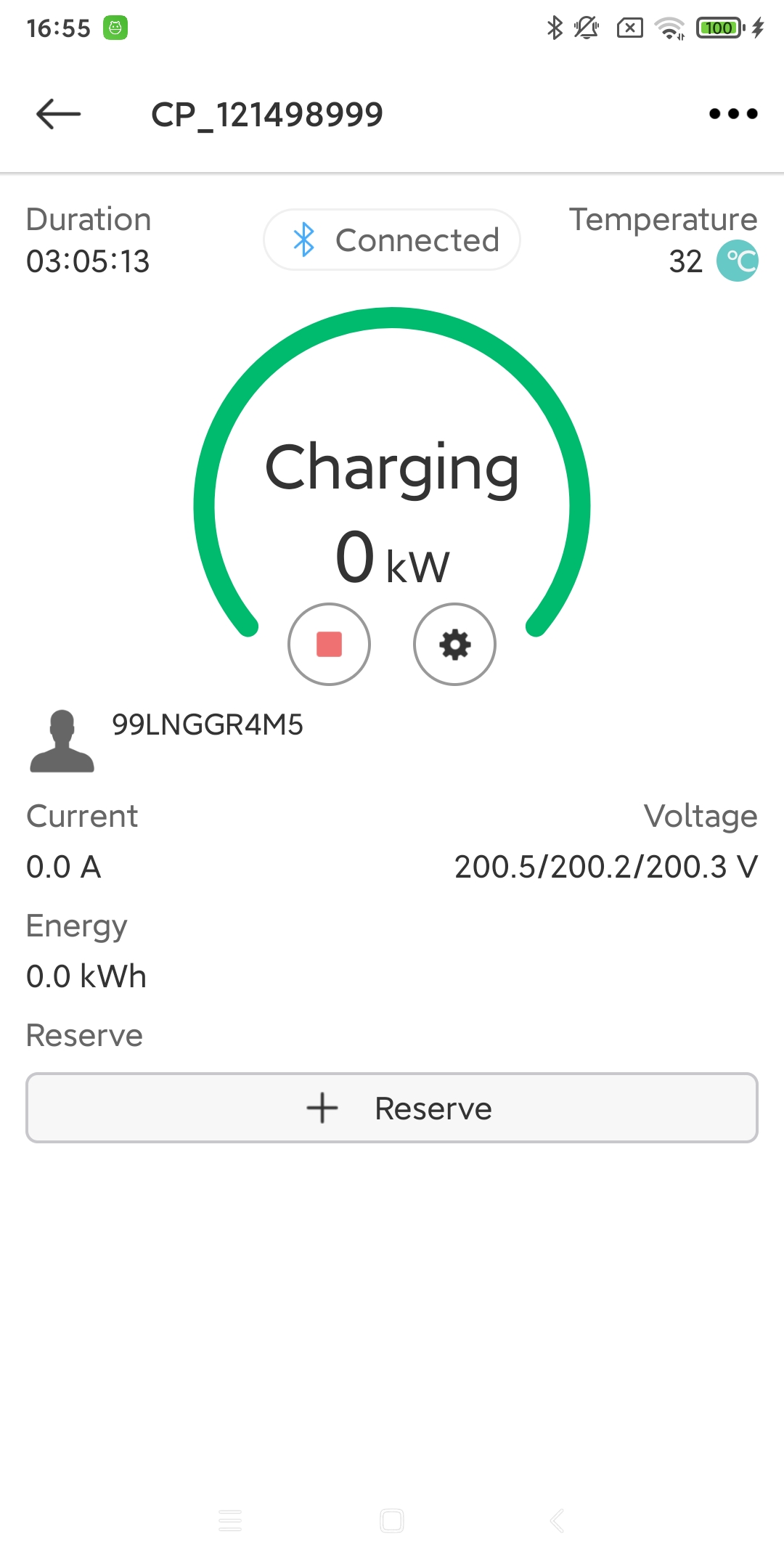

Connected:: 此处会产生 4 中可能性的图标，分别是 Wi-Fi 信号，4g 信号，以太网信号以及蓝牙图标。前三种图标代表充电桩设备是以哪种方式链接到的后台服务器。蓝牙图标代表此次查看充电桩设备使用的是蓝牙连接。
Temperature:: 充电桩设备的温度。您可以在“应用设置”中，设置温度显示的单位。（摄氏度或华氏度）。
Status:: 充电桩设备具有以下状态，您可以查看不同状态的含义。
Power:: 充电桩设备当前的充电功率。
Current:: 充电桩设备当前的电流。（单位：A）
Voltage:: 充电桩设备当前的电压。（单位：V）
Energy:: 充电桩设备此次充电事务所消耗的电量。（单位：kWh）
Cost:: 充电桩设备此次充电事务所消耗的费用。（需要在充电之前设置货币单位及费用区间）。

Status	Explanation
Available	The charging station is ready and available to provide charging service to electric vehicles (EVs).
Preparing	The charging station is performing pre-charge initialization tasks, such as system checks or preparing to start the charging process.
Charging	The EV is actively receiving charging from the charging station, and the charging process is in progress.
SuspendedEVSE	The charging session is temporarily paused, but the charging station remains available. This can happen due to issues detected by the charging station or user-initiated interruption.
SuspendedEV	The charging session is temporarily paused, and the EV is unable to access charging services. This can happen when the EV is temporarily halted from charging, such as when the user manually disconnects or the EV reaches full charge.
Finishing	The charging station is finishing up the charging process, such as transitioning the EV from fast charging to trickle charging.
Reserved	The charging station’s charging point is reserved and unavailable for other users to charge their EVs.
Unavailable	The charging station is temporarily unavailable and unable to provide charging service. This can happen due to equipment malfunctions, maintenance, or other reasons for downtime.
Faulted	The charging station has encountered a fault or error and is unable to operate normally. Repair or reboot of the equipment may be required.
