9. Expanded functionality

9.1. Bluetooth connection

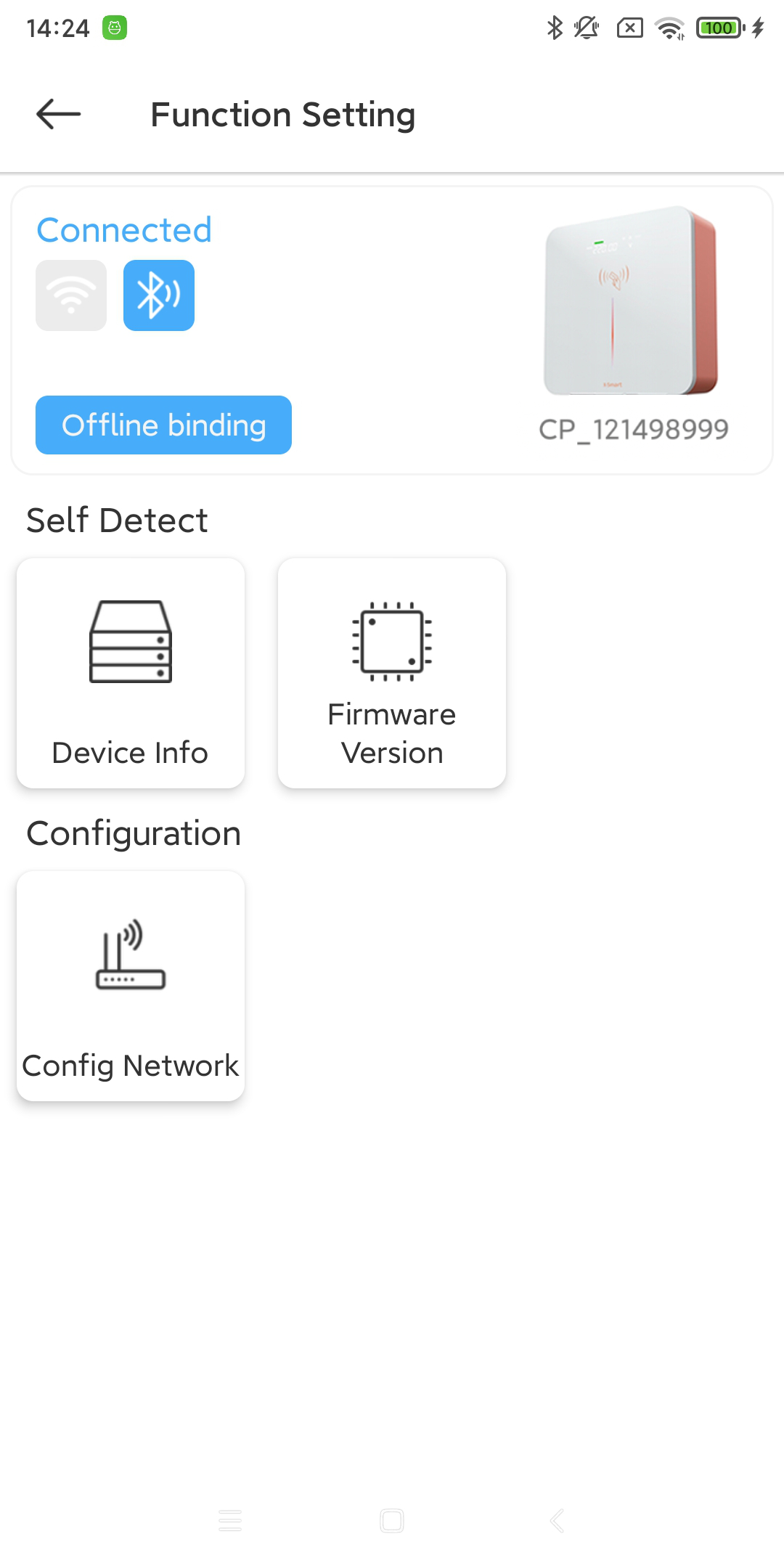

9.1.1. Unbound device

Device Info:

View the basic information of the current charging pile equipment. [1]

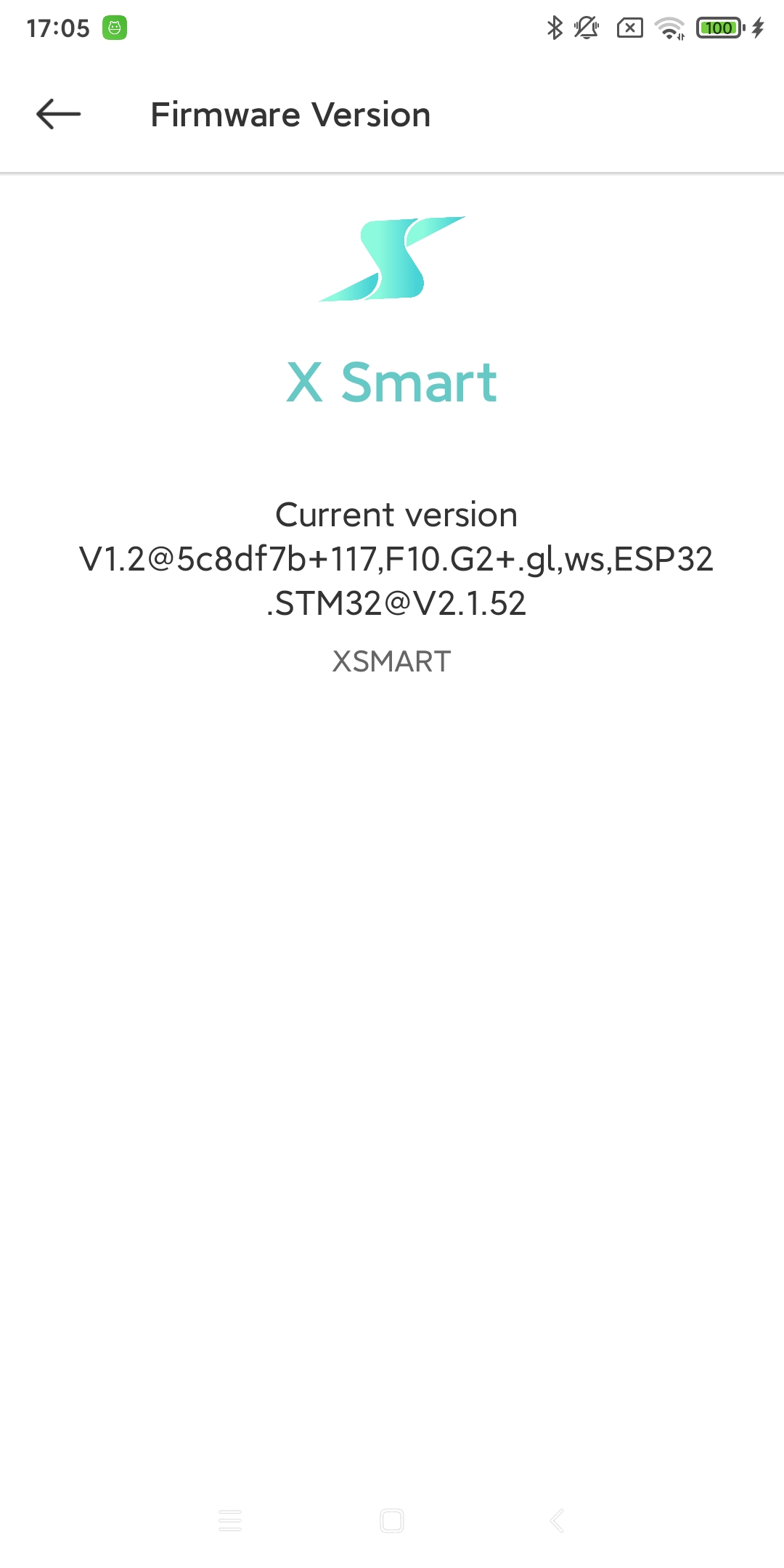

Firmware Version:

Check the firmware version number of the current charging pile device. [2]

Config Network:

Configure the network for the current charging pile device. [3]

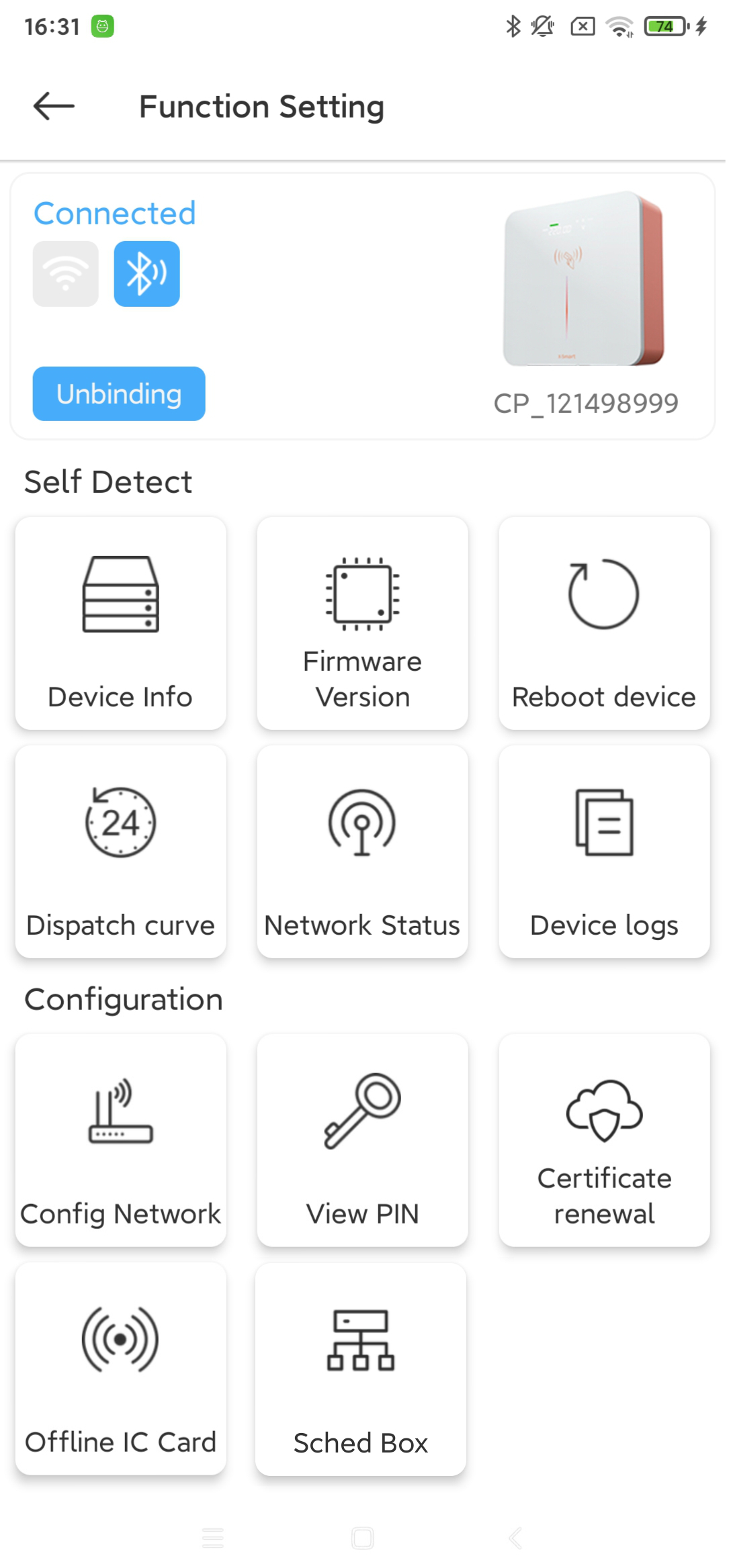

9.1.2. Unbound device

Device Info:

View the basic information of the current charging pile equipment. [1]

Firmware Version:

Check the firmware version number of the current charging pile device. [2]

Reboot device:

Soft restart the current charging pile device. [4]

Dispatch curve:

View the future scheduling curve of the current charging pile equipment. [5]

Network Status:

Check the current network status of the charging pile device. [6]

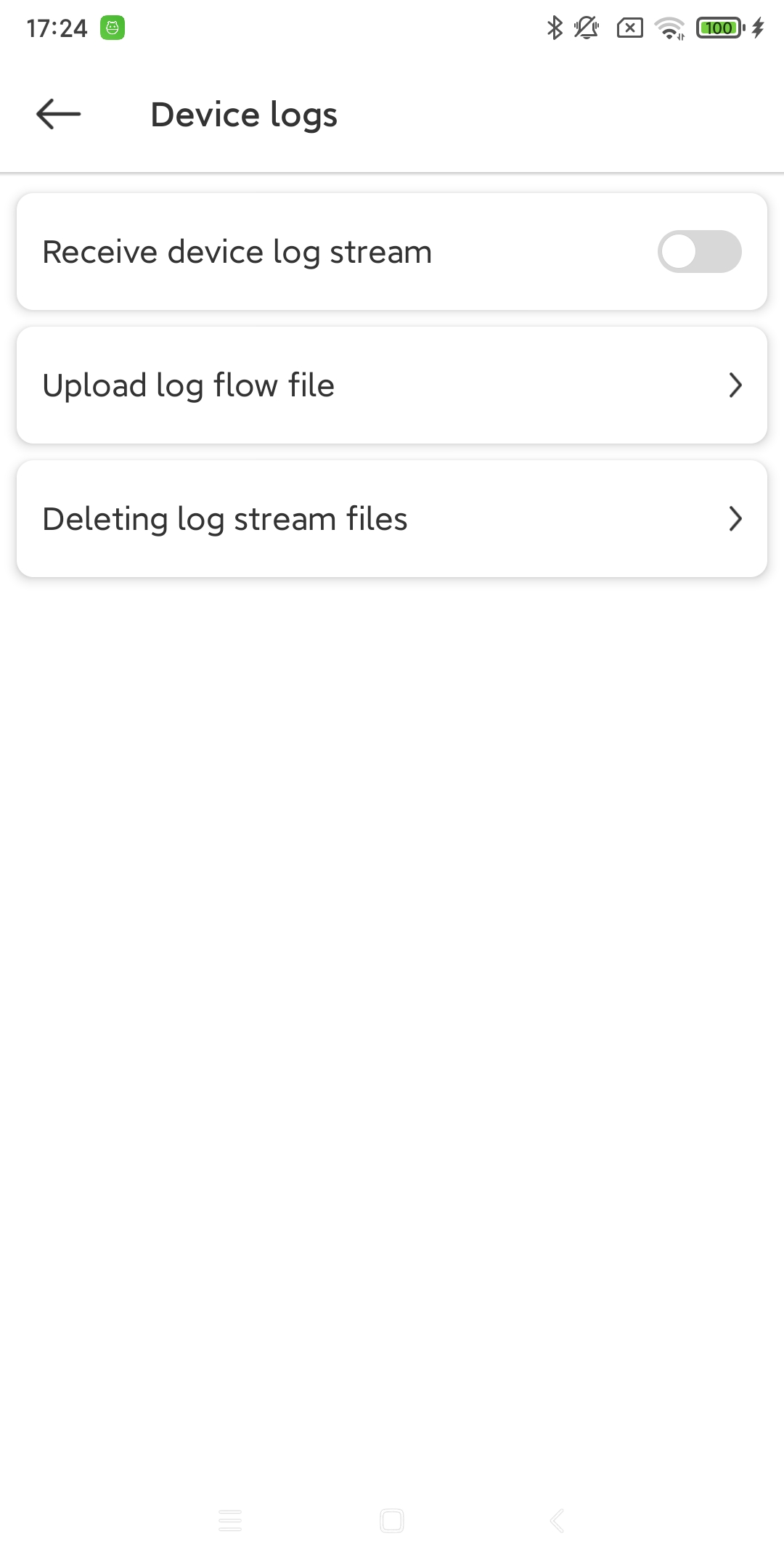

Device logs:

Set the current charging pile device’s log switch. [7]

Config Network:

Configure the network for the current charging pile device. [3]

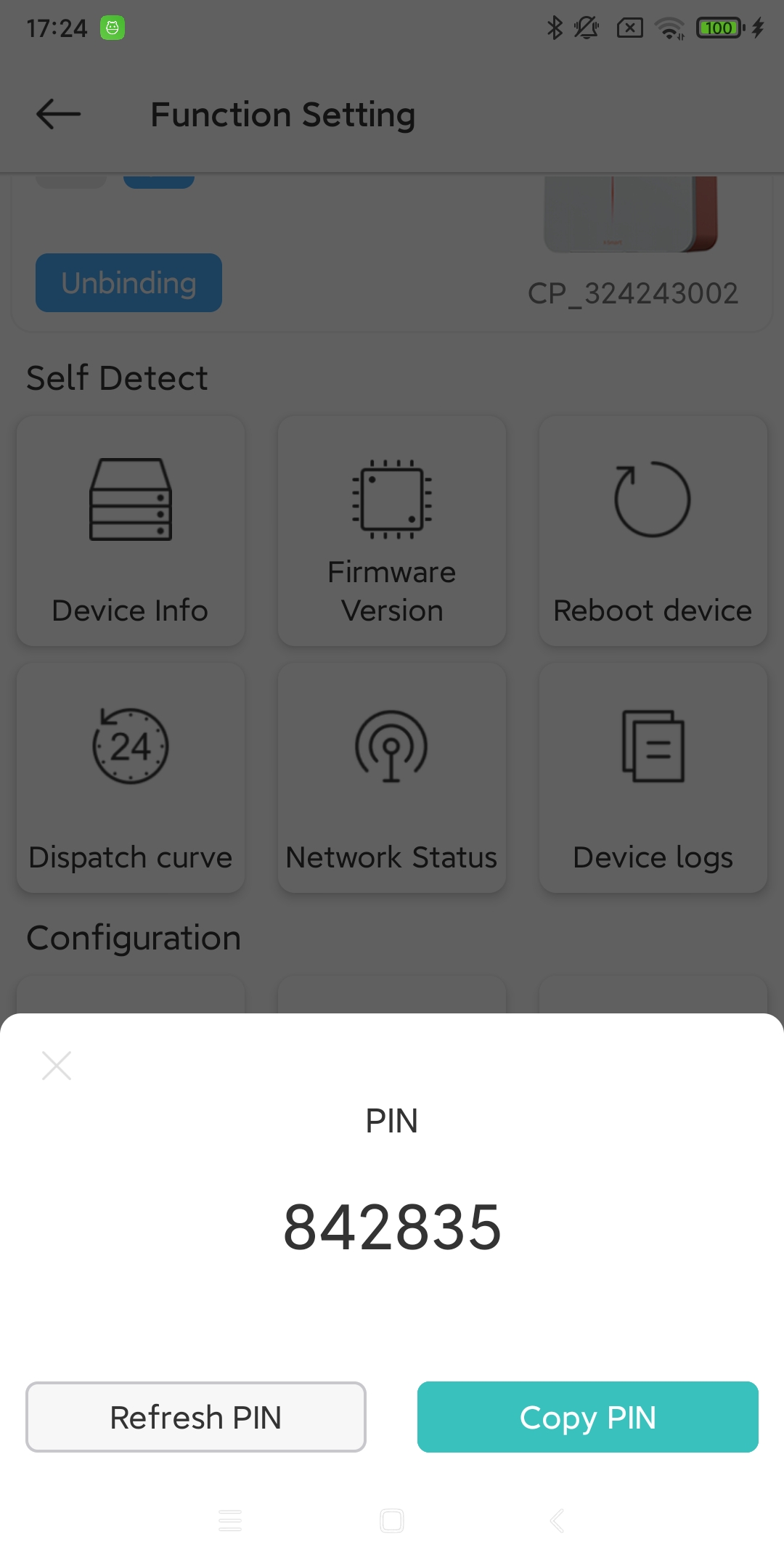

View PIN:

Check the PIN code of the current charging station device. [8]

Certificate renewal:

Update the current charging pile’s certificate information. (Only available for OCPP2.0)

Offline IC Card:

The IC card information used when the current charging pile device is offline. [9]

Sched Box:

Scheduling Box (second generation) sets the slave address. (Need to be used with Sched Box) [10]

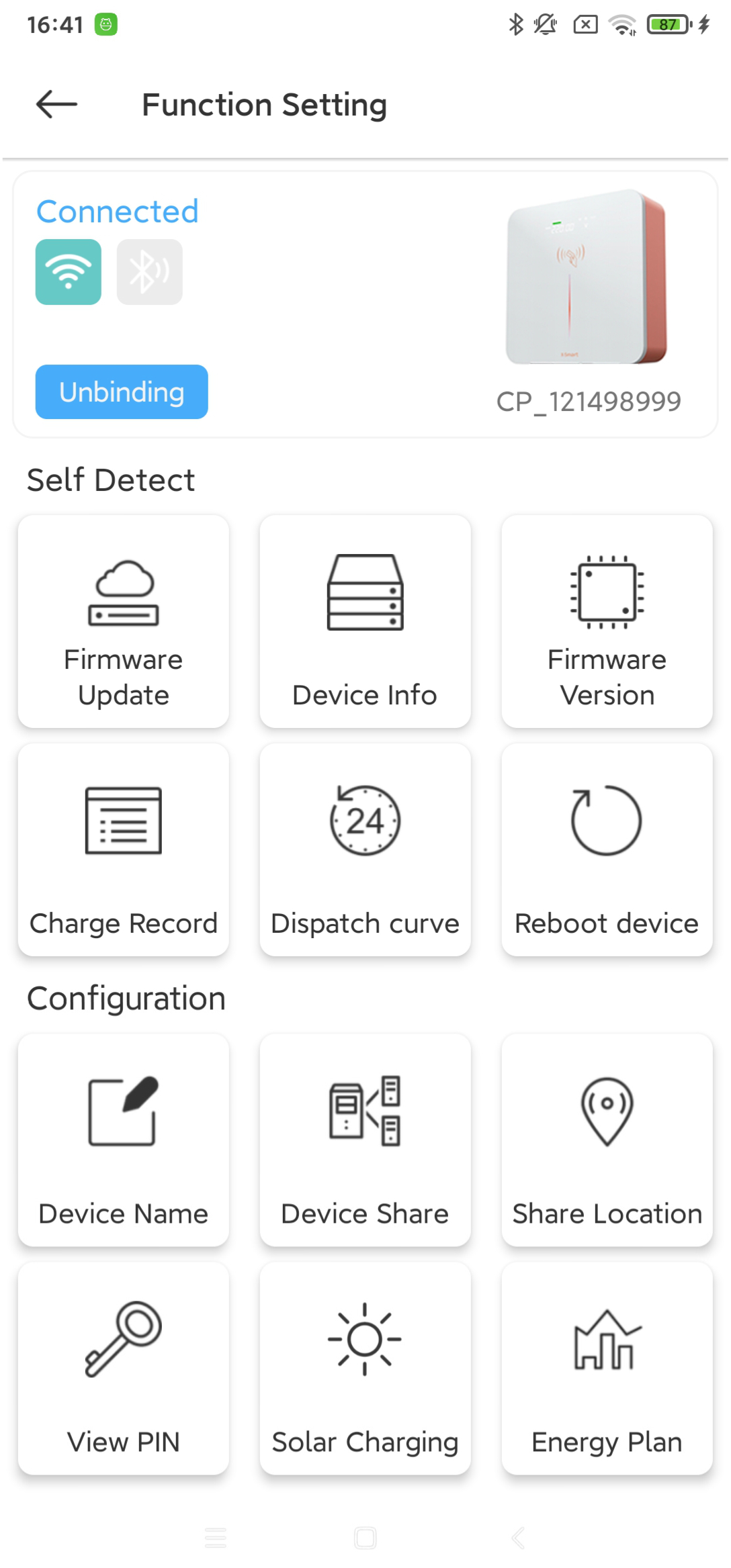

9.2. Network connection

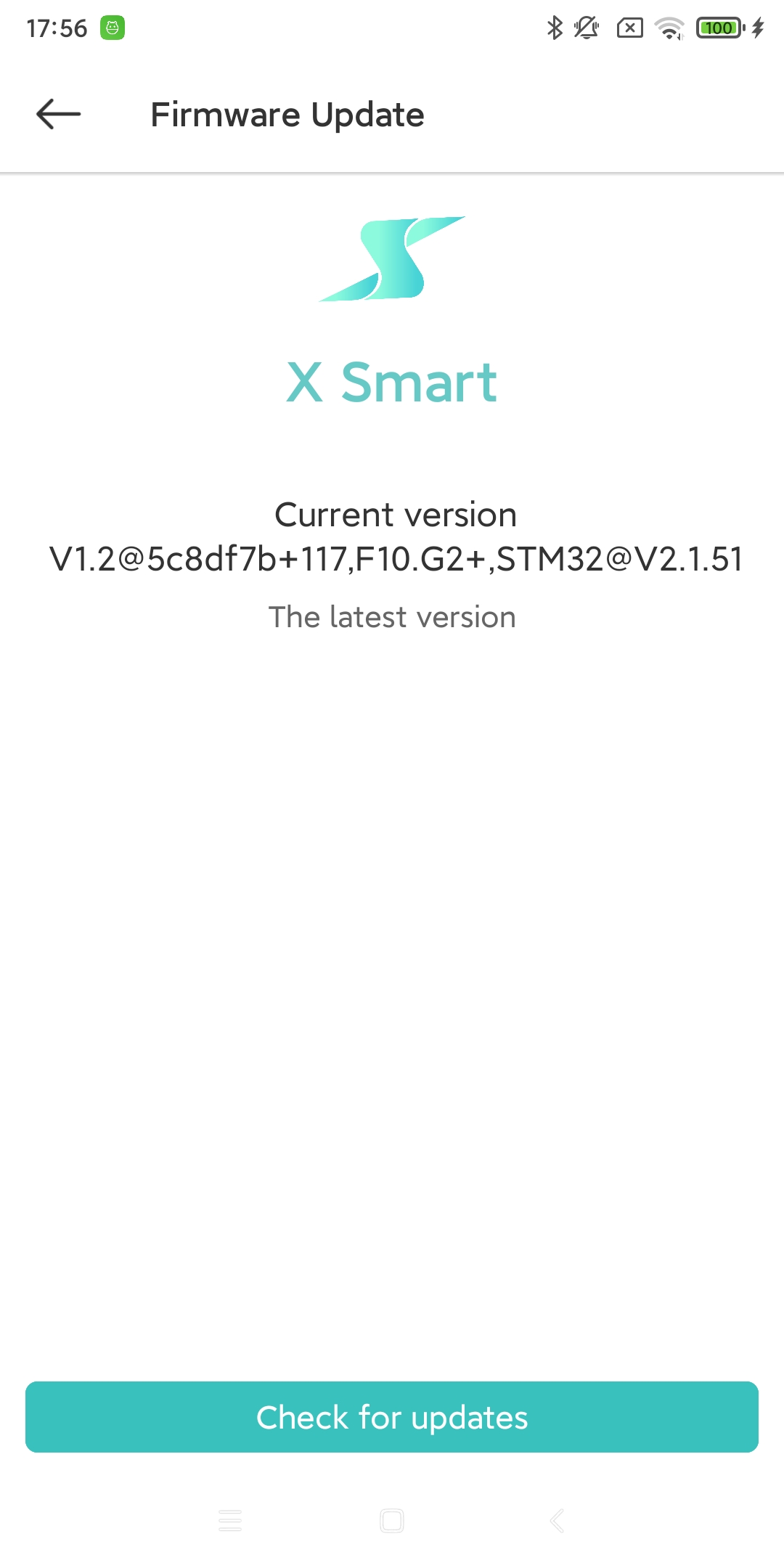

Firmware Update:

Check and update the firmware version of the current charging pile device. [11]

Device Info:

View the basic information of the current charging pile equipment. [1]

Firmware Version:

Check the firmware version number of the current charging pile device. [2]

Charge Record:

View the charging records of the current charging pile device. [12]

Dispatch curve:

View the future scheduling curve of the current charging pile equipment. [5]

Reboot device:

Soft restart the current charging pile device. [4]

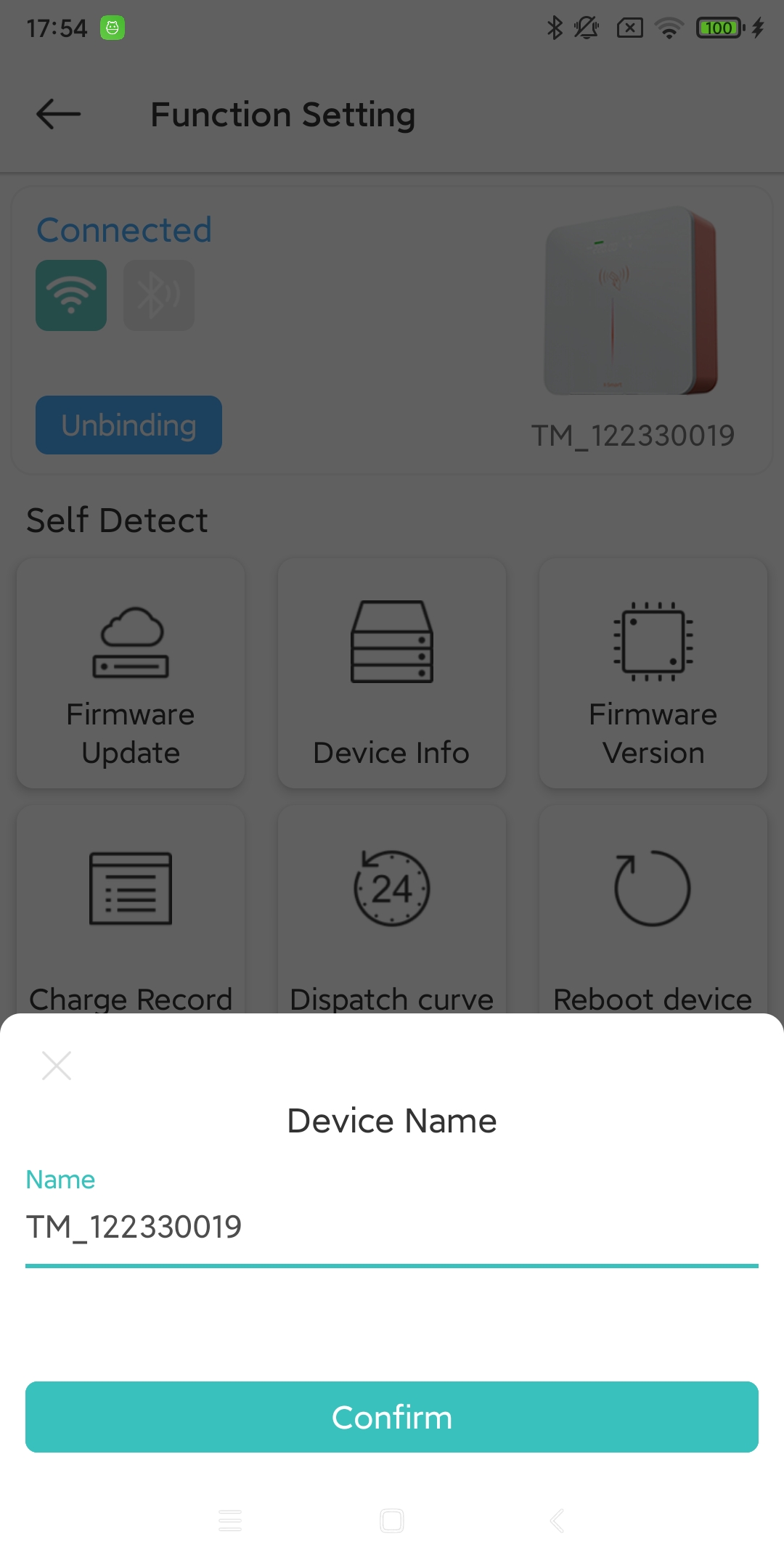

Device Name:

Set an alias for the current charging pile device. [13]

Device Share:

Share the current/other charging pile devices with other accounts. [14]

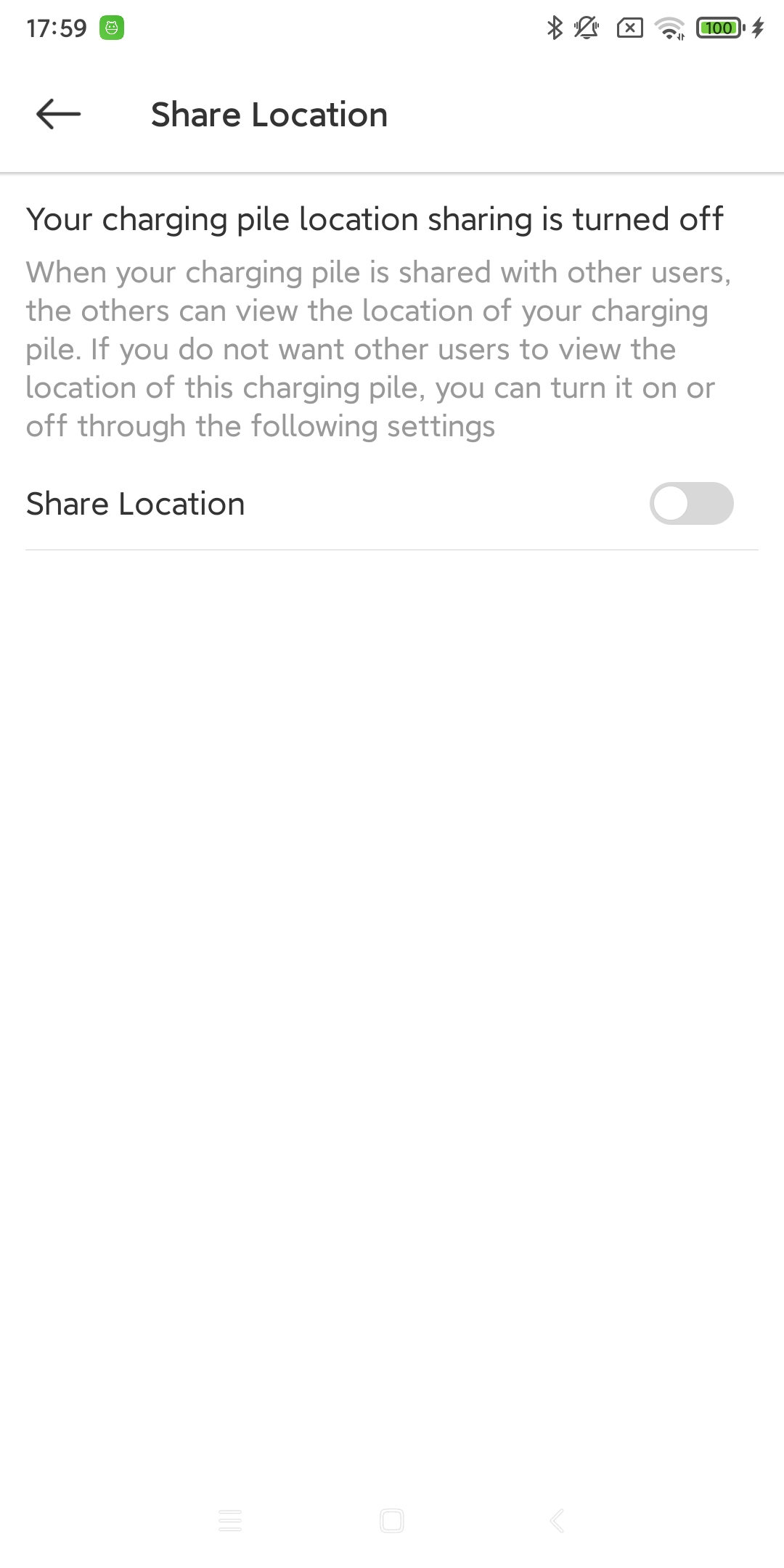

Share Location:

Set/view the current geographical location of the charging station. [15]

View PIN:

Check the PIN code of the current charging station device. [8]

Solar Charging:

Set the solar charging mode for the current charging station. (Need to be used with CT Box/Sched Box) [16]

Energy Plan:

Set the cost-related value for the current charging station. [17]

[1] (1,2,3)

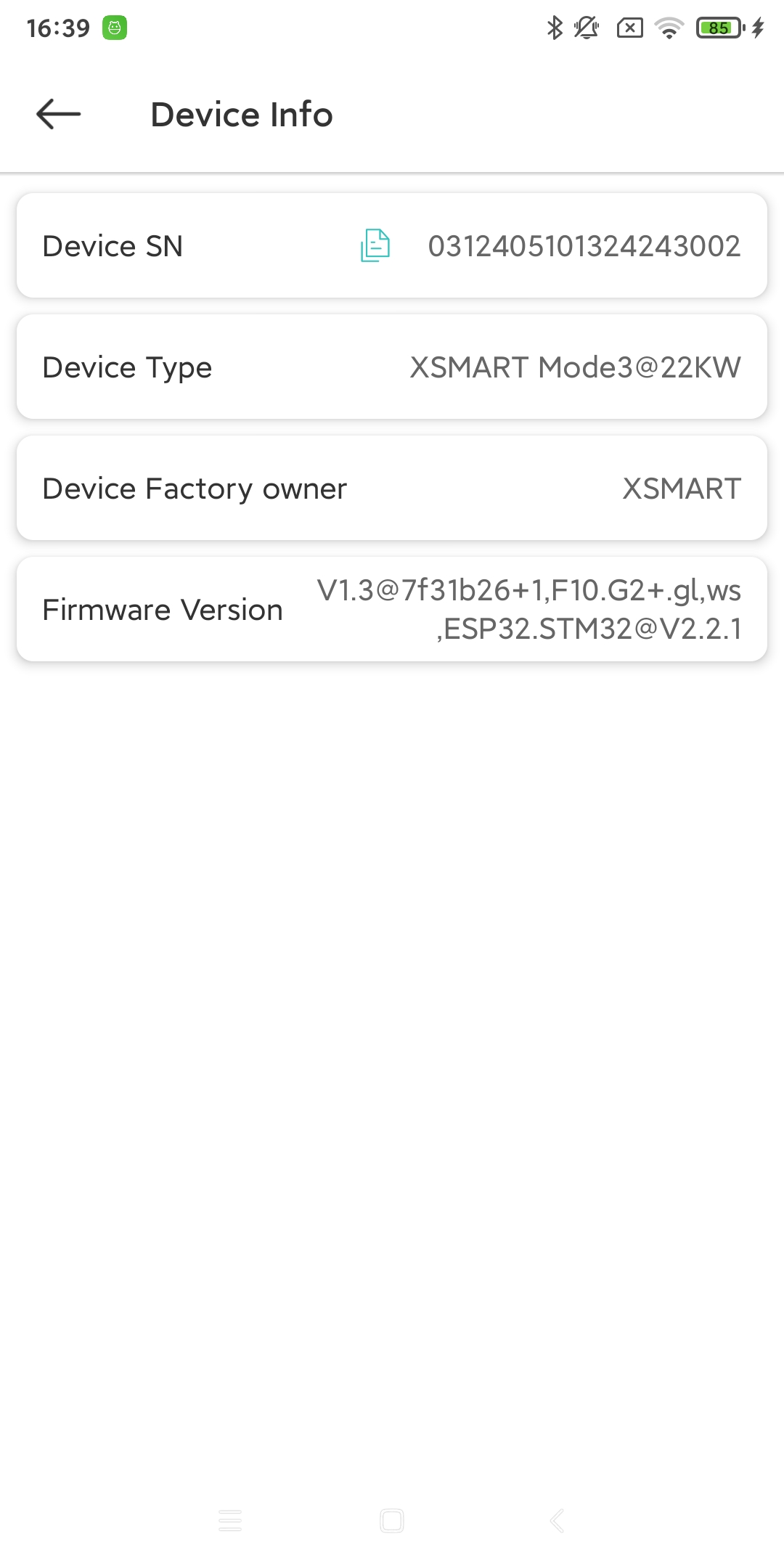

For device information, refer to the following example

[2] (1,2,3)

For device version, refer to the following example

[3] (1,2)

For charging pile equipment network configuration, you can refer to Section 3.2 in This chapter.

[4] (1,2)

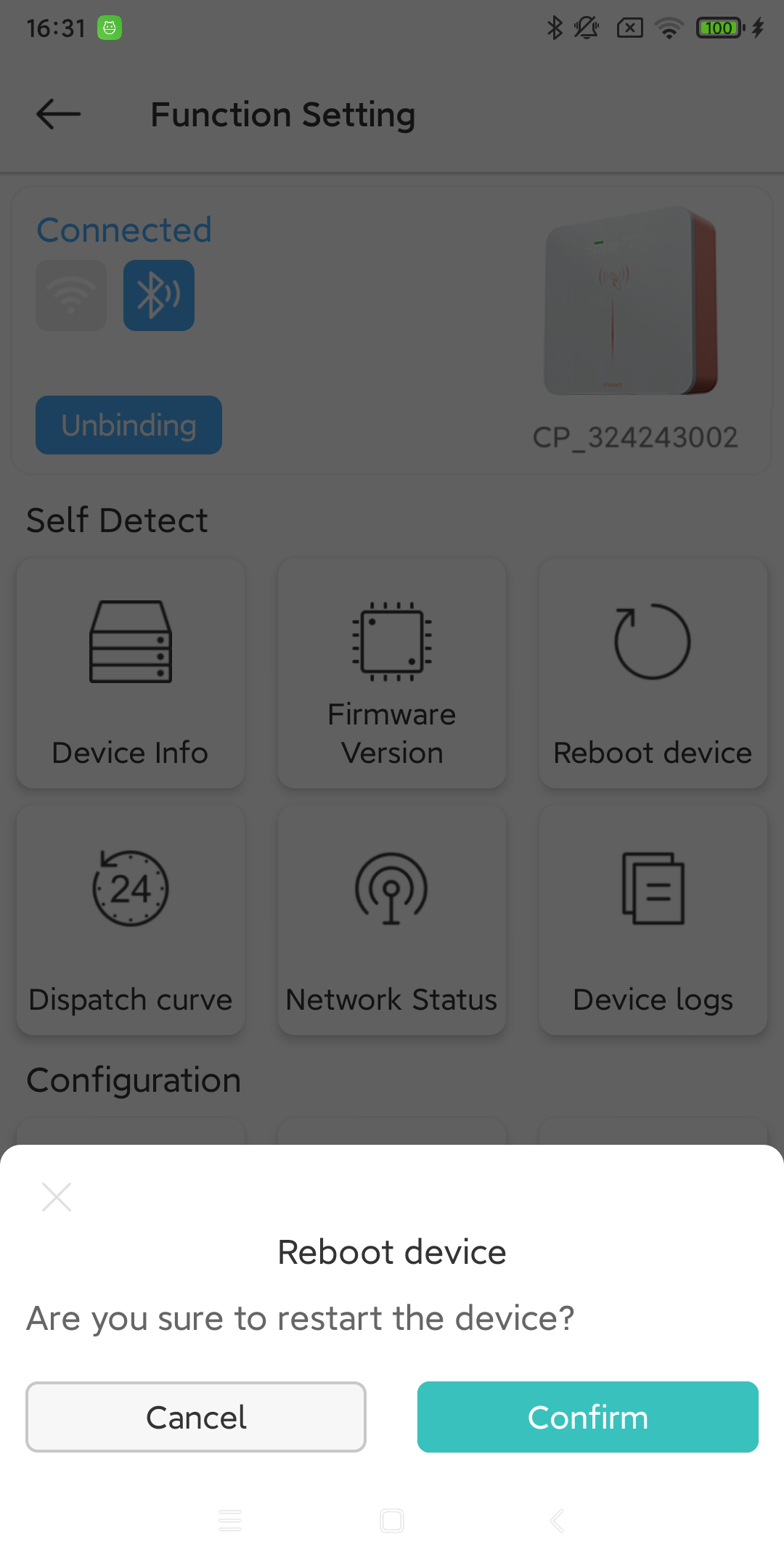

Refer to the following example for device soft restart

[5] (1,2)

The equipment scheduling curve refers to the following example

[6]

Charging pile device network status, you can refer to this section.

[7]

Charging station device log switch. (Generally, you don’t need to turn on this setting. This switch can only help us troubleshoot problems when we encounter unsolvable problems.)

[8] (1,2)

Charging pile device PIN code. (When your device is offline and needs to be used by others, you can provide this PIN code to them. They can use this PIN code to connect via Bluetooth and use your charging pile device for charging.) (After refreshing the PIN code, the previous PIN code will become invalid.)

[9]

When the charging pile device is offline, use the IC card. You can refer to this section.

[10]

The charging pile device uses the Sched Box, you can refer to this section.

[11]

Charging pile device firmware version and new version information.

[12]

Charging record information of charging pile equipment. You can refer to this section.

[13]

Charging pile device settings alias.

[14]

To share the charging pile device to other accounts, you can refer to this section.

[15]

The geographical location of the charging pile equipment.

[16]

For the solar charging mode of charging pile equipment, you can refer to this section.

[17]

For information about charging pile equipment costs, you can refer to this section.
